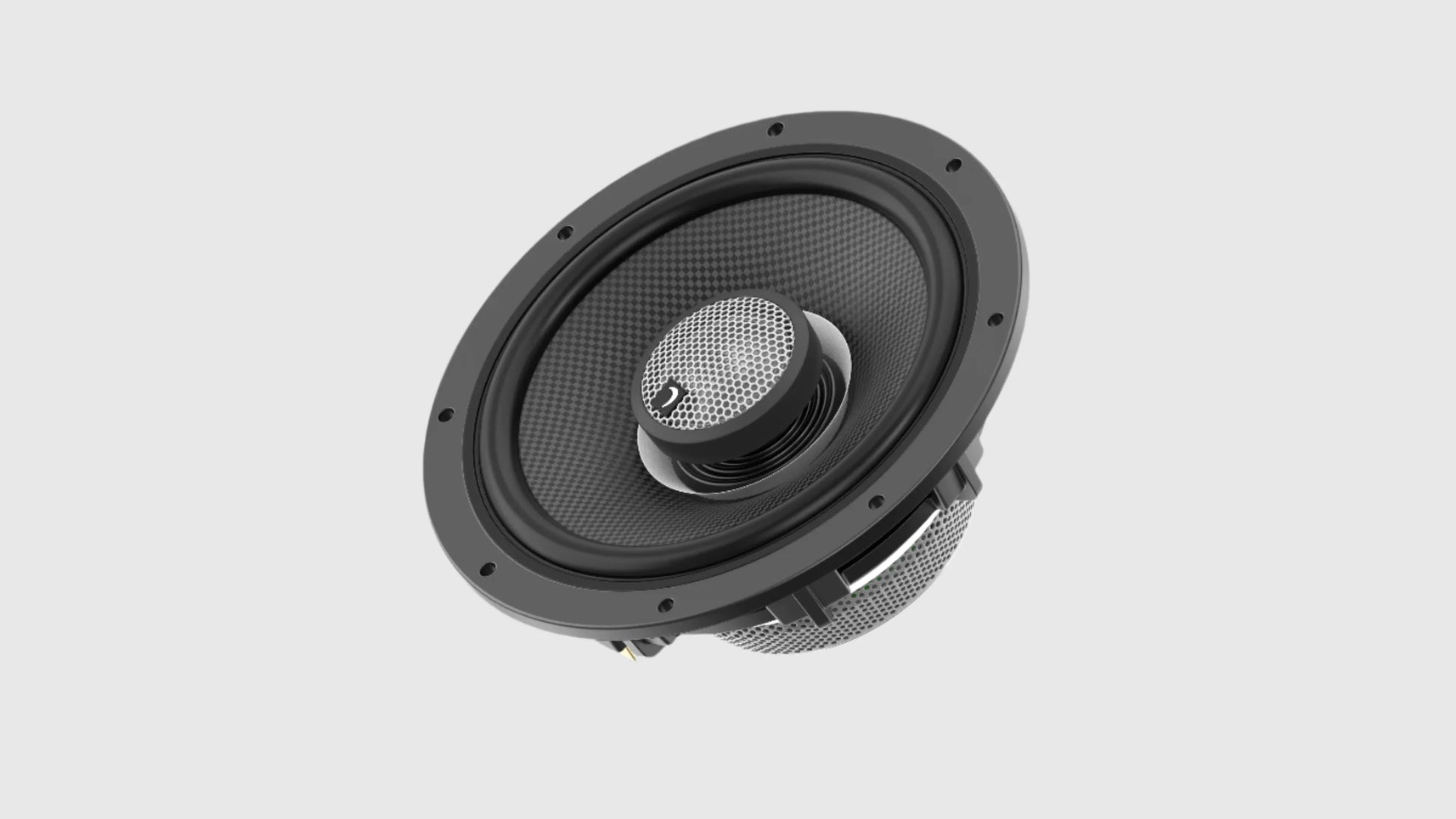

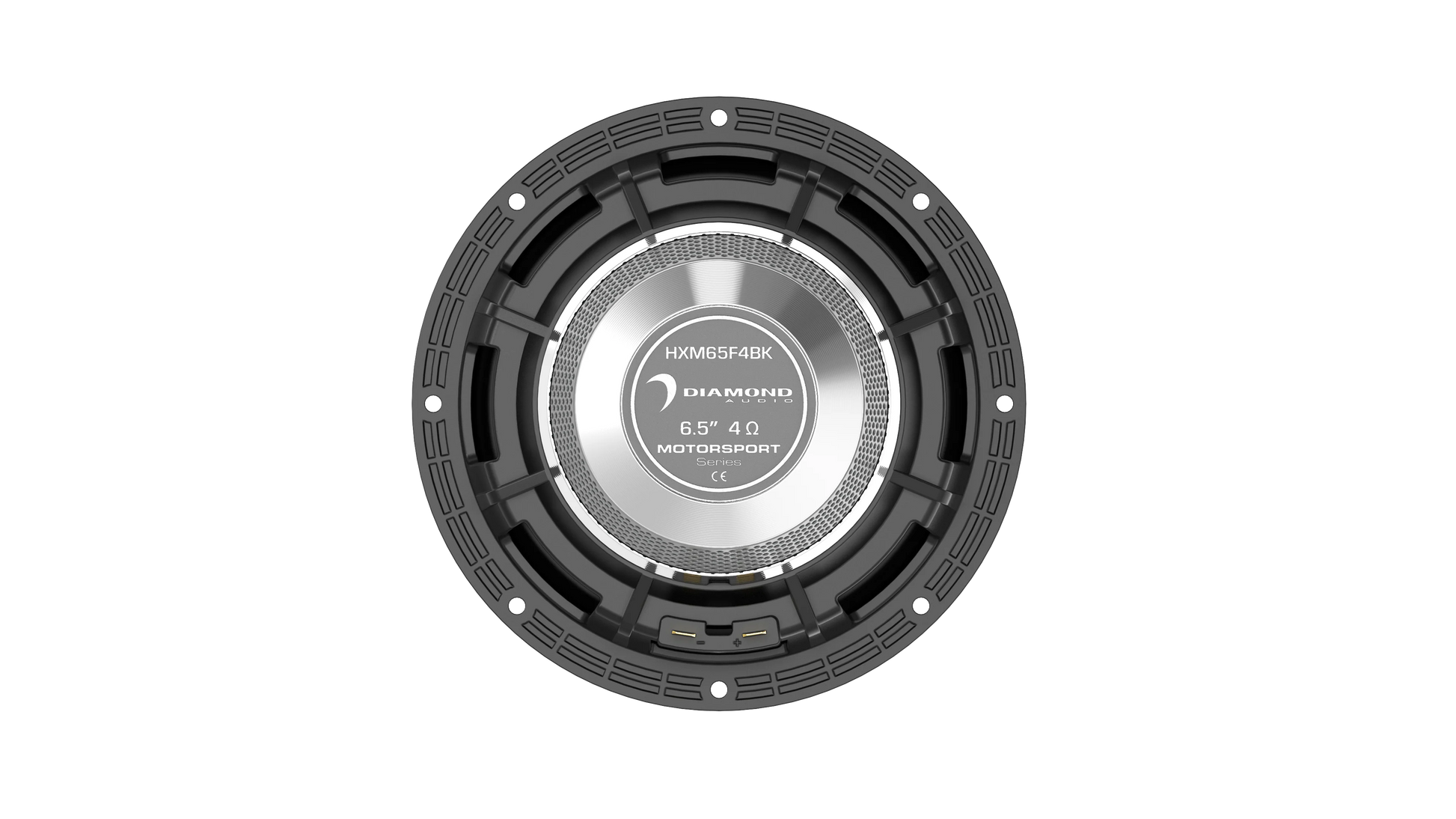

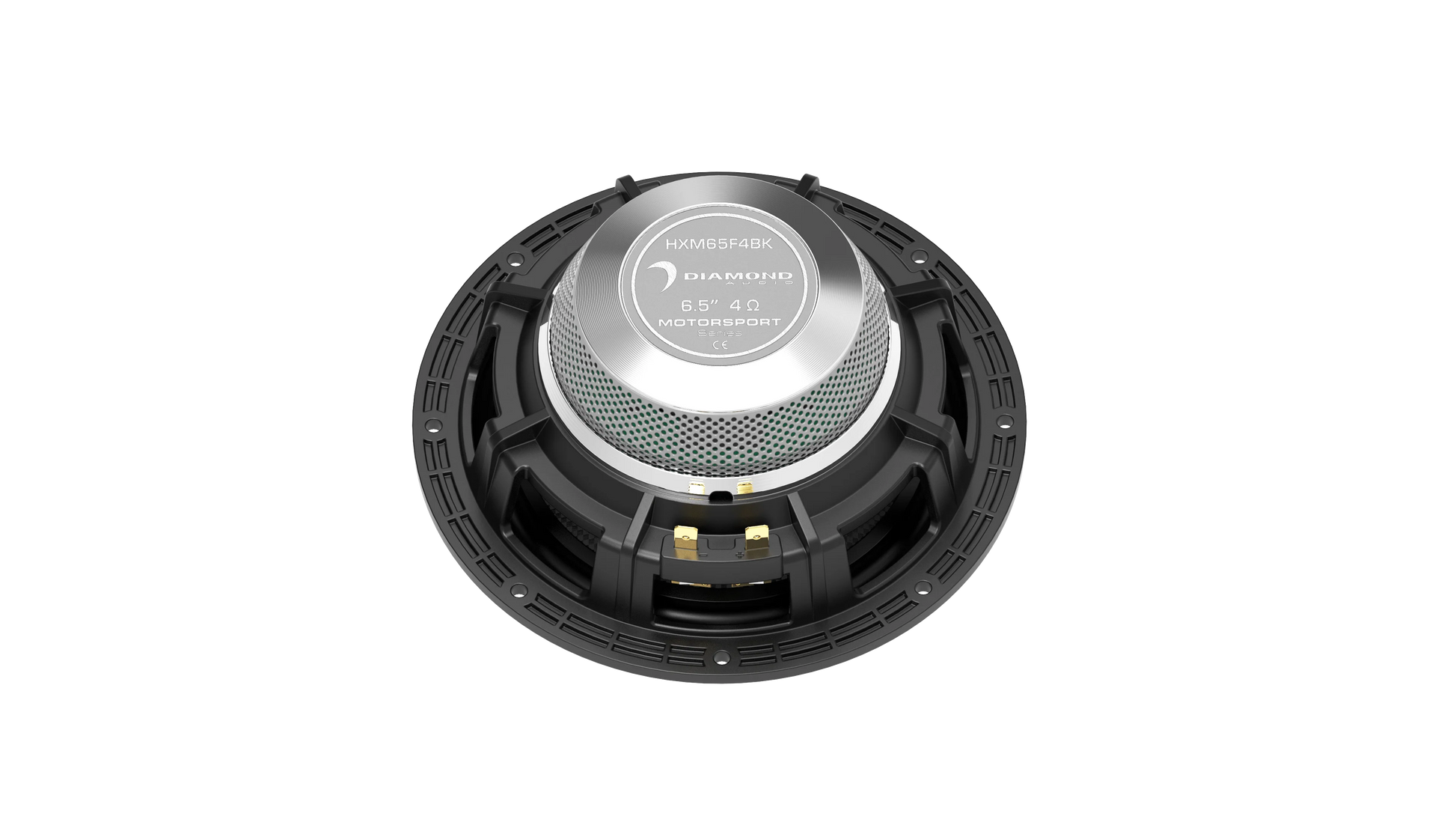

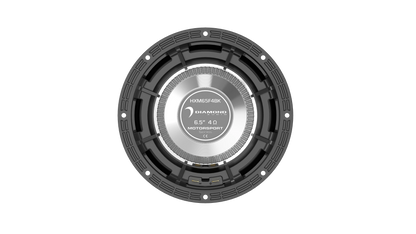

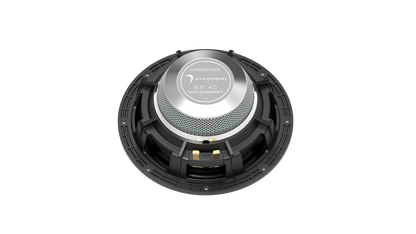

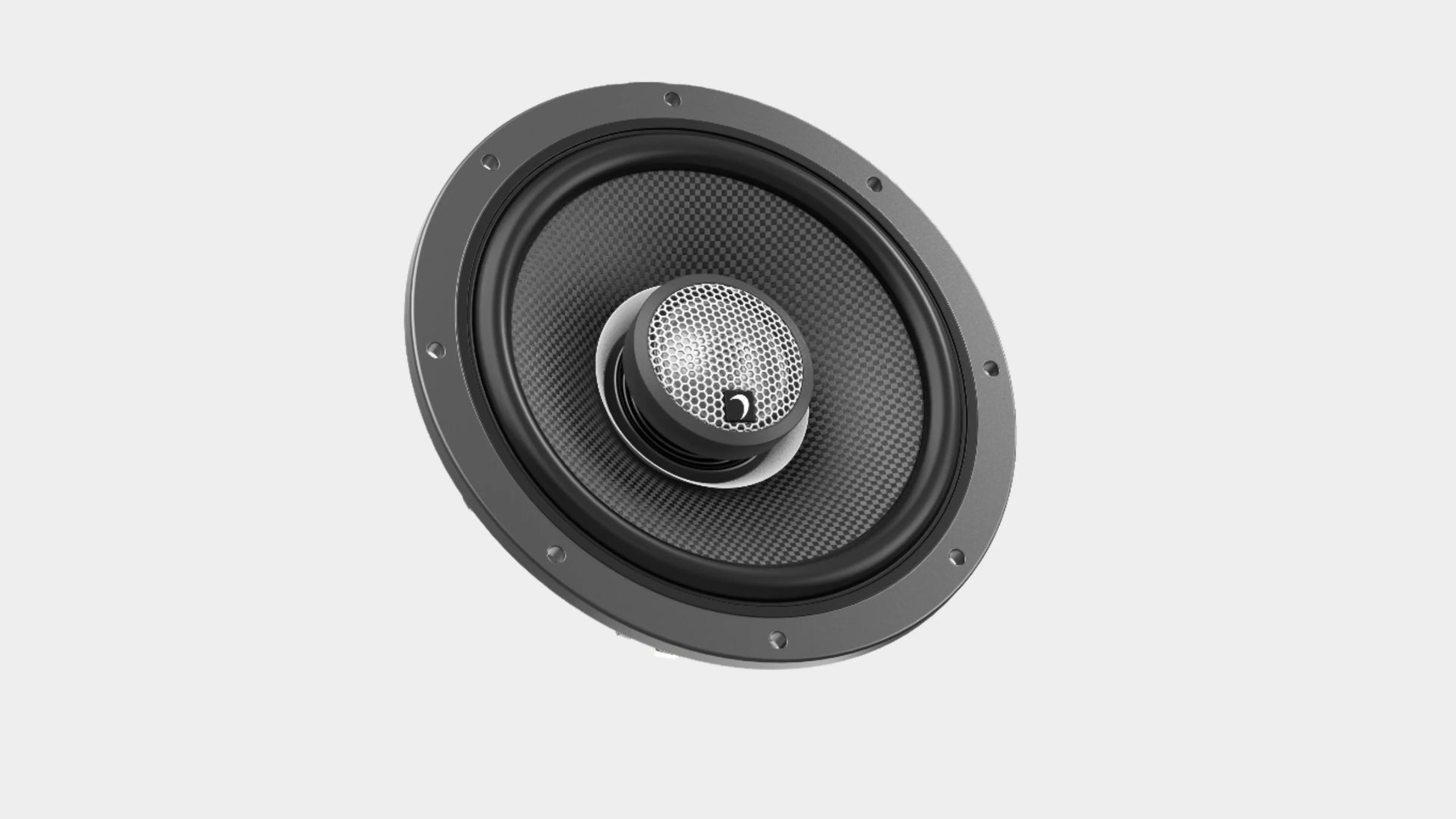

Diamond Audio HXM65FBK

6.5" 2-Way High Output Marine Speakers (2Ω or 4Ω)

All Weather 6.5" Speakers

SPECIFICATIONS:

HXM65FBK (2Ω or 4Ω)

• Power Handling - 125RMS/250MAX

• SPEAKER SIZE - 6.5"
• SPEAKER TYPE - HORN LOADED CO AXIAL
• OHMS (PER COIL) - 2 or 4
• NUMBER OF VOICE COILS - SINGLE
• CONE MATERIAL - CARBON FIBER
• DIAPHRAGM MATERIAL - TITANIUM
• BASKET MATERIAL - FIBREGLASS REINFORCED POLYMER
• MAGNET TYPE - NEODYMIUM
• SURROUND MATERIAL - RUBBER
• WATER RESISTANCE -
• VOICE COIL DIAMETER - INCH (MM) - 2"
• THIELE/SMALL PARAMETERS
• SENSITIVITY (1W/1M): 95
• RE (Ω) [SERIES]: 1.8
• QMS: 7.506
• QES: 0.369
• QTS: 0.352
• FS (HZ): 105
• VAS (L): 6.172
• CMS (MM/N): 0.288
• MMS (G): 8.024
• SD (M2): 122.718
• BL (T*M): 5.068
• XMAX (MM): 2.75
• MOUNTING DEPTH: IN.(MM):2.52" (64MM)
• CUT OUT DIAMETER IN.(MM):5.44" (138.06MM)
• OVER ALL DIAMETER IN.(MM):6.61" (167.79MM)
• OVER ALL HEIGHT IN.(MM):3.03" (77.02MM)
