Collection: SounDigital EVOX2 / EVOPS
THE NEXT STEP IN EVOLUTION

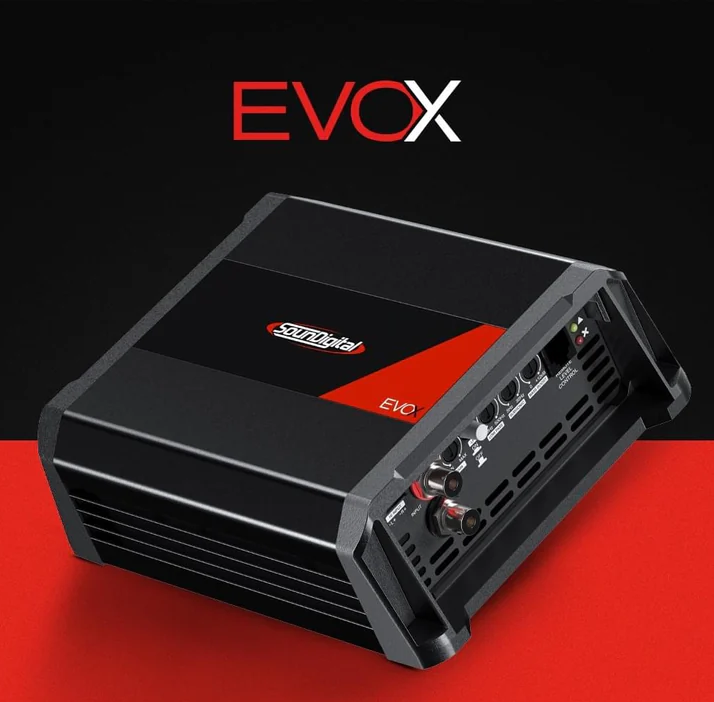

EVOX & EVOPS
The EVO X Line brings the latest technology in a compact design with the highest quality components. From a pioneering technology, SounDigital brought to car audio amplifiers something that had not been explored yet. The thermal coupling through RTGP system.
The exclusive RTGP system (Thermal Recovery for power generation) assures SounDigital products both greater thermal efficiency and robustness with higher stability.
-
SounDigital HKI MINI - DIGITAL SOUND PROCESSOR - DSP
Vendor:SounDigital EVOX8-Channel Digital Sound Processor 4 in / 8 out processor that is designed for smartphone programming, low level integration with enough EQ and adjustment capability to tune a majority of builds out there. We knew that this processor would find a home in multiple styles of builds, so we also had the board conformal coated to help protect it in less than ideal environments. 8 Channel DSP 4 Balances RCA Inputs Max Input Level: 4Vrms(+14dBu) Input Impedance: 100KΩ 8 RCA Outputs Max Output Level: 3.5Vrms(+13dBu) Frequency Response: 10 Hz to 24 kHz (-1dB) THD+N: <0.01% Bit Rate: 32 Bits Sampling Frequency: 96 kHz Types of Crossovers: Linkwitz-Riley / Butterworth / Bessel (up to 48dB/oct) Input EQ: 15 bands Output EQ: 8 bands per channel (Q Factor: 0.6 to 0.99) Time Alignment: 0 to 18.95ms Limiter Threshold: -54 to +6 dB Attack: 1 to 200 ms Release: 1 to 988ms Phase Control 3 Presets Dimensions: 5.9 x 4.3 x 1.7 inches This DSP does not have a remote out wire, only remote in. So an additional plug may be required or a TR4 to help prevent a popping that may occur on some bikes. To make out plug and play for 14 and up Harley Davidson Stock radio use this harness here. -

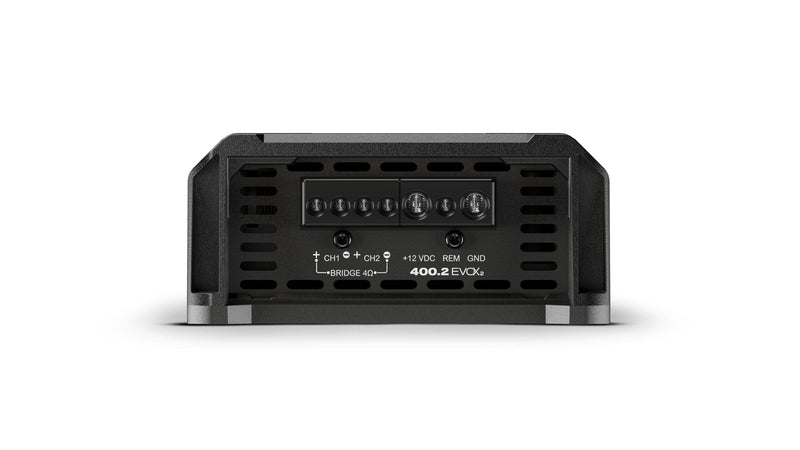

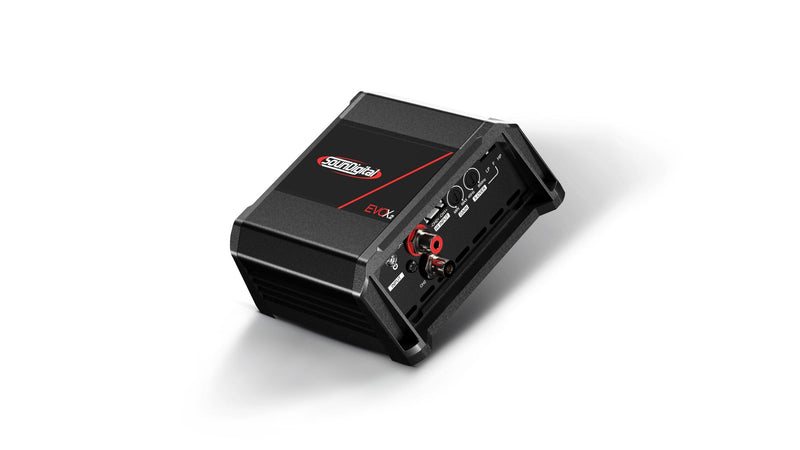

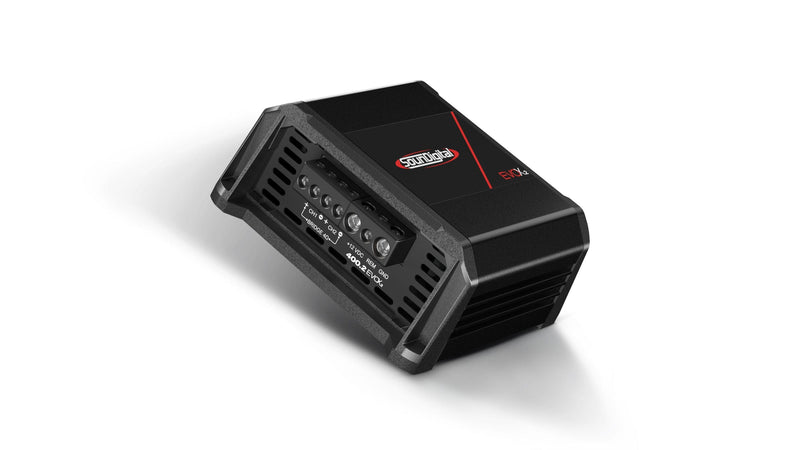

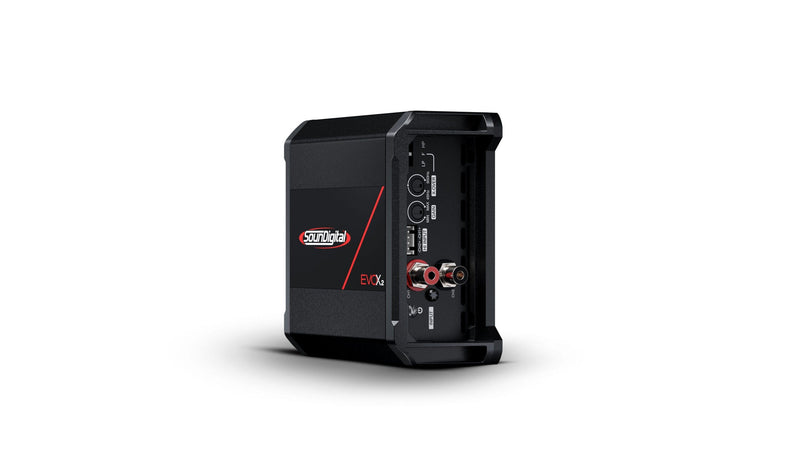

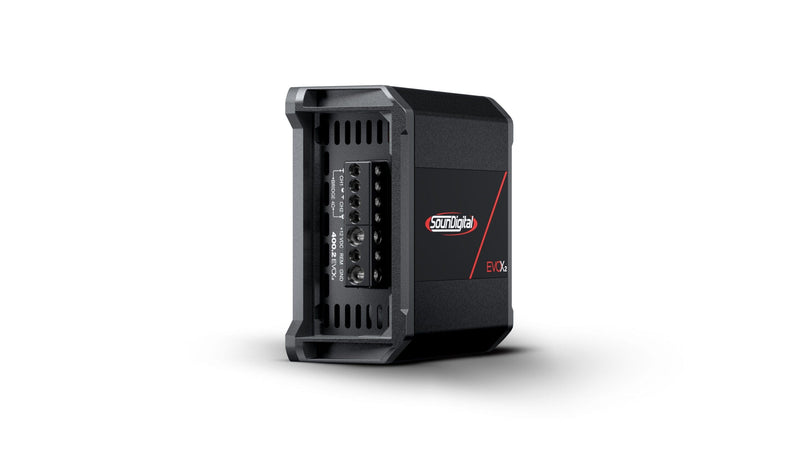

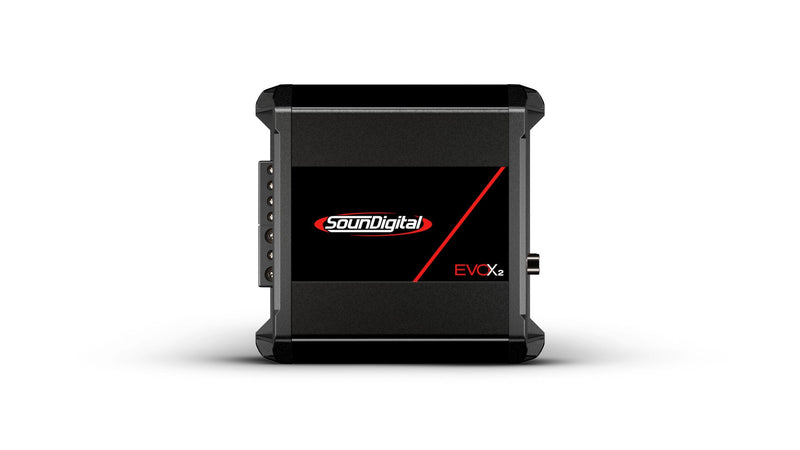

SounDigital EVOX2 400.2 - 4Ω
Vendor:SounDigital EVOXSounDigital EVOX2 400.2 - 4Ω 400.2 EVOX2 - 4 Ω Power @ 12.6V @ 4Ω: 2 X 132 WRMS Power @ 12.6V @ 2Ω: 2 X 200 WRMS Power @ 12.6V @ 1Ω: N/A Bridge Power @ 12.6V @ 4Ω: 1 X 400 WRMS Bridge Power @ 12.6V @ 2Ω: N/A Power @ 14.4V @ 4Ω: 2 X 147 WRMS Power @ 14.4V @ 2Ω: 2 X 223 WRMS Power @ 14.4V @ 1Ω: N/A Bridge Power @ 14.4V @ 4Ω: 1 X 446 WRMS Bridge Power @ 14.4V @ 2Ω: N/A Product Dimensions: 4.8 x 4.4 x 2.0 in -

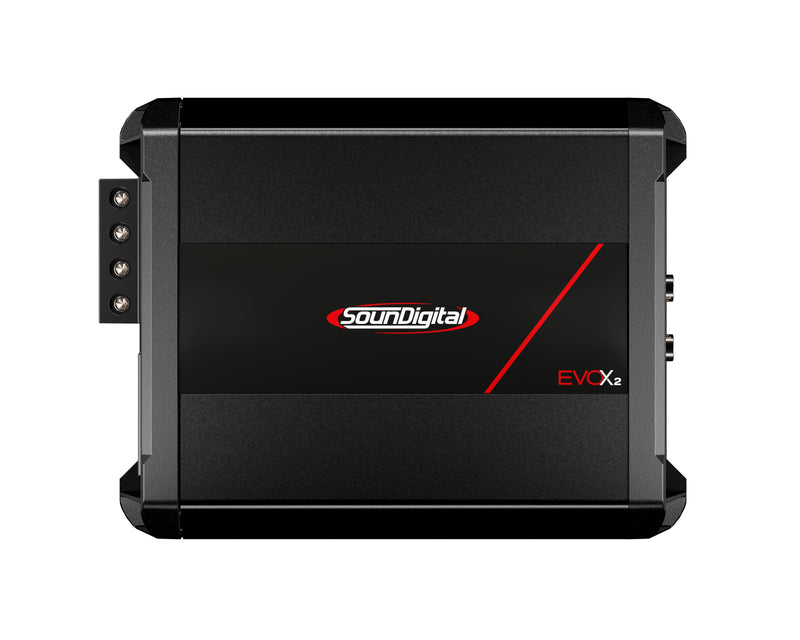

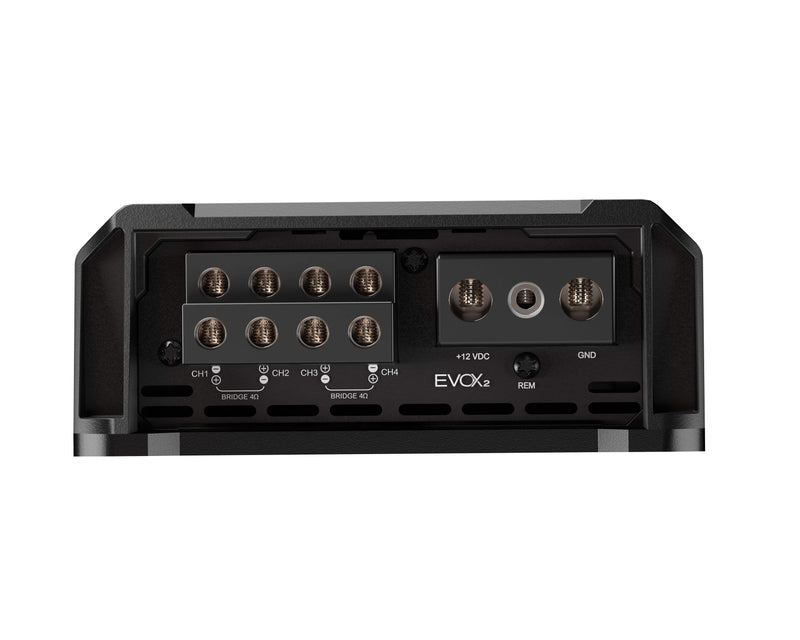

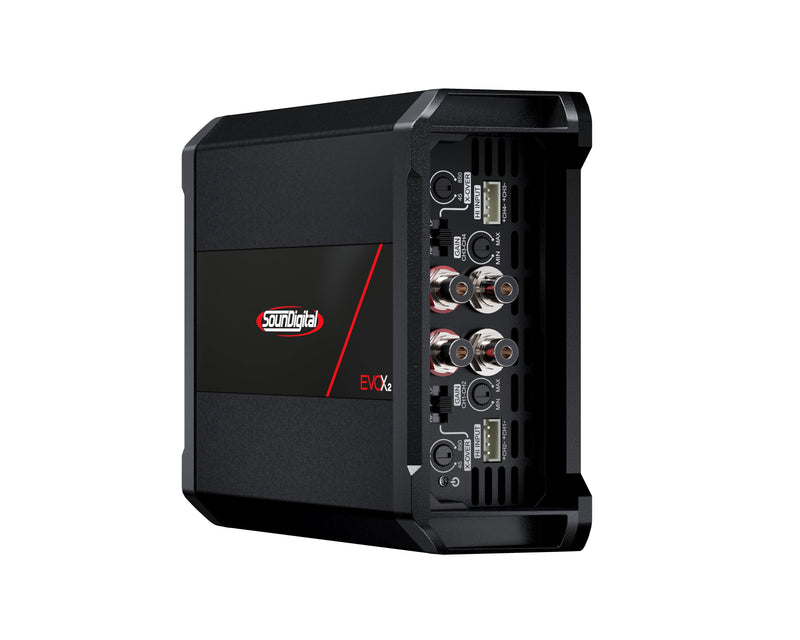

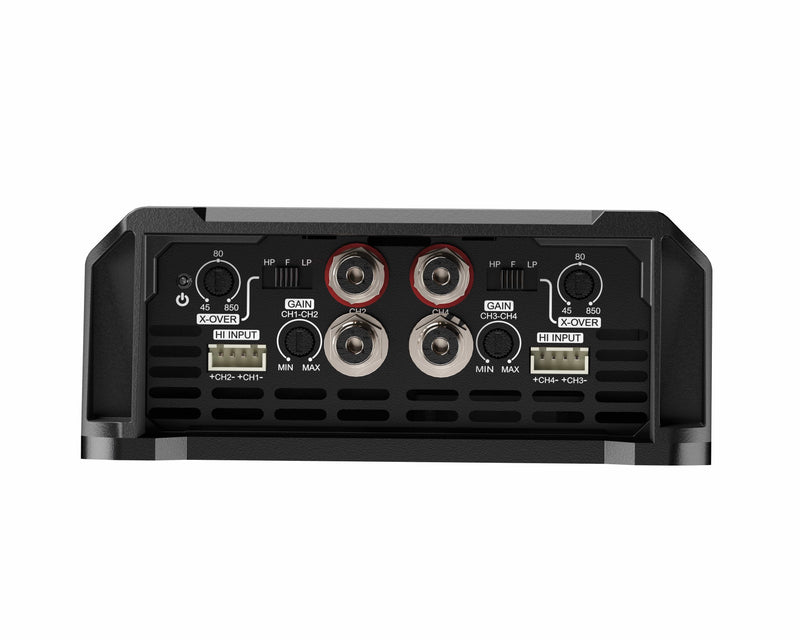

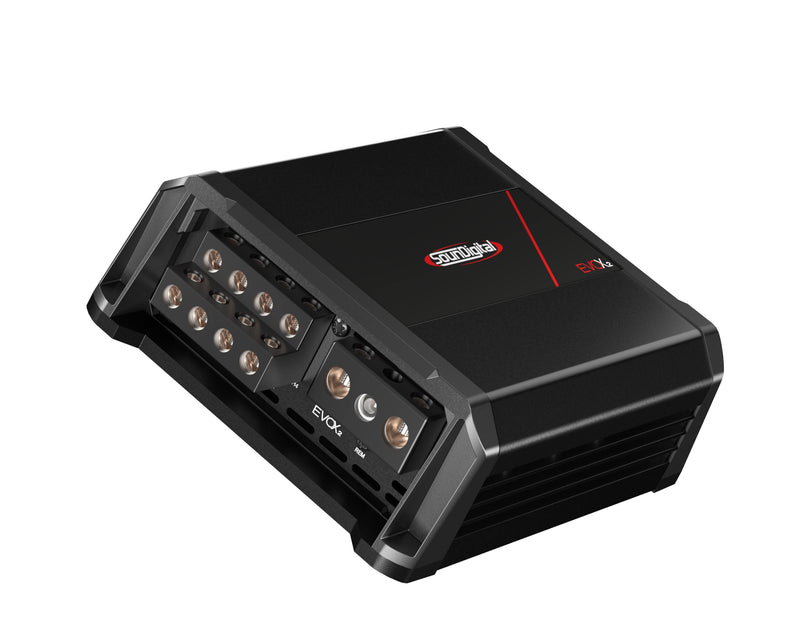

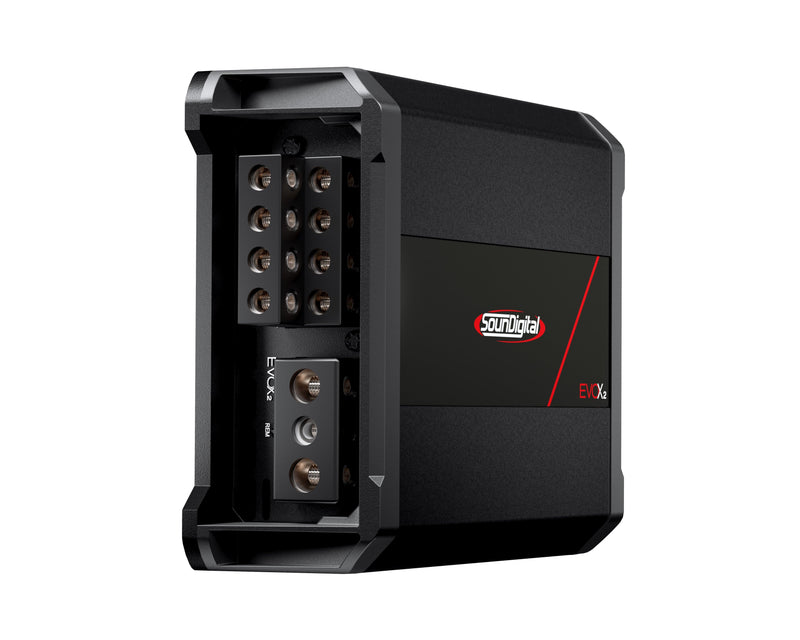

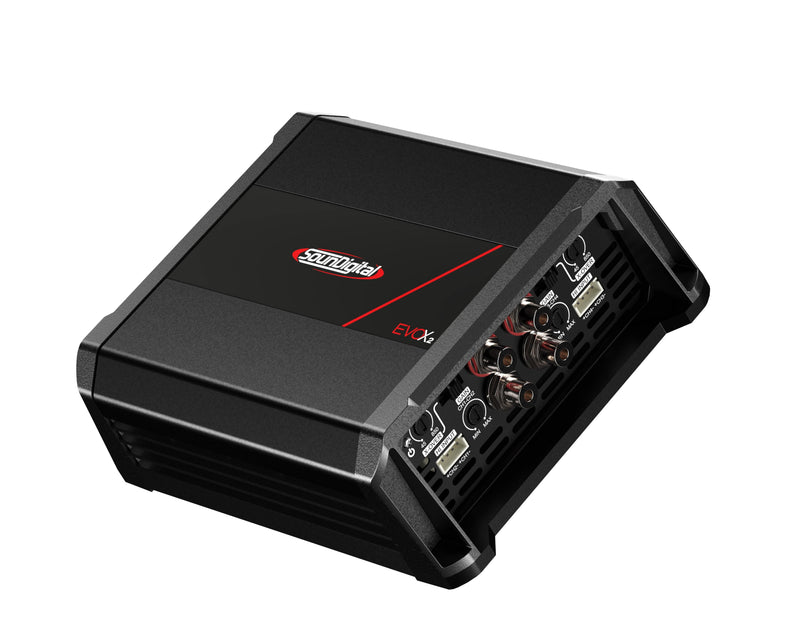

SaleSounDigital EVOX2 1200.4 - 4Ω or 2Ω
Vendor:SounDigital EVOXSounDigital EVOX2 1200.4 - 4Ω or 2Ω 1200.4 EVOX - 2 Ω Power @ 12.6V @ 4Ω: 4 X 131 WRMS Power @ 12.6V @ 2Ω: 4 X 198 WRMS Power @ 12.6V @ 1Ω: 4 X 300 WRMS Bridge Power @ 12.6V @ 4Ω: 2 X 396 WRMS Bridge Power @ 12.6V @ 2Ω: 2 X 600 WRMS Product Dimensions: 7.1 x 5.3x 2.2 in 1200.4 EVOX - 4 Ω Power @ 12.6V @ 4Ω: 4 X 198 WRMS Power @ 12.6V @ 2Ω: 4 X 300 WRMS Power @ 12.6V @ 1Ω: N/A Bridge Power @ 12.6V @ 4Ω: 2 X 600 WRMS Bridge Power @ 12.6V @ 2Ω: N/A Product Dimensions: 7.1 x 5.3 x 2.2 inSale -

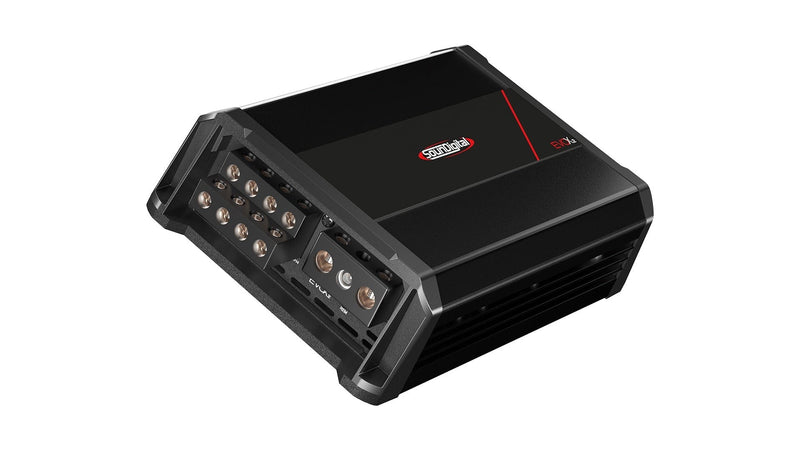

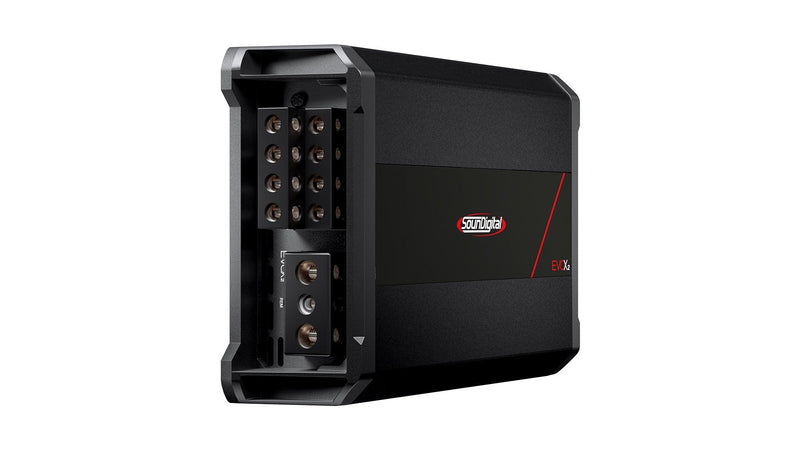

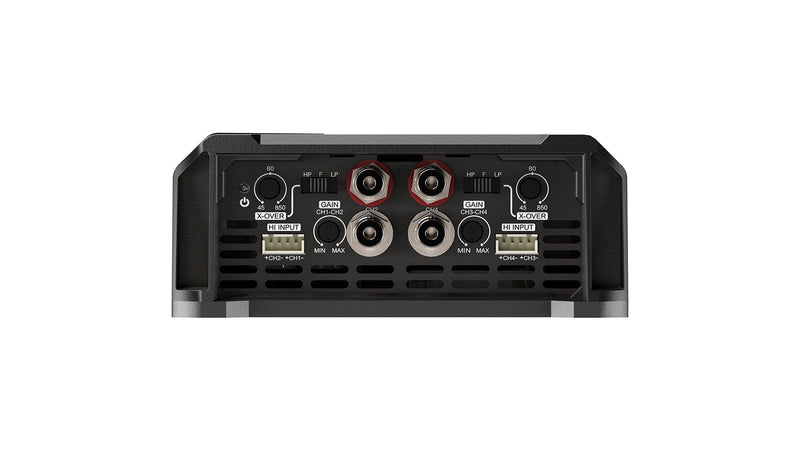

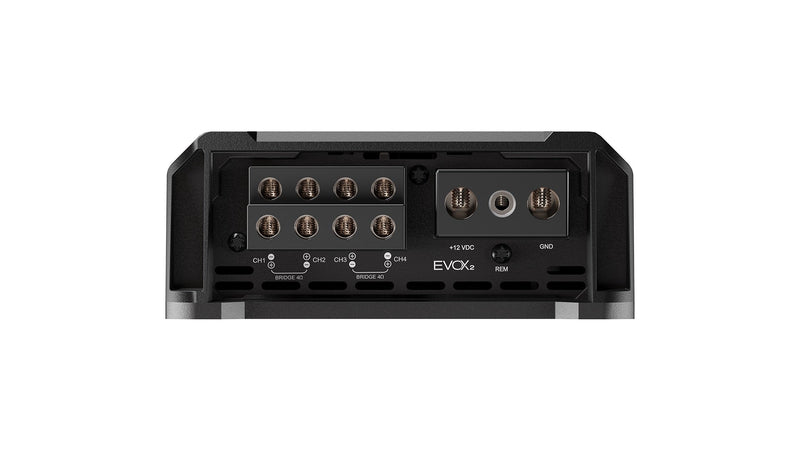

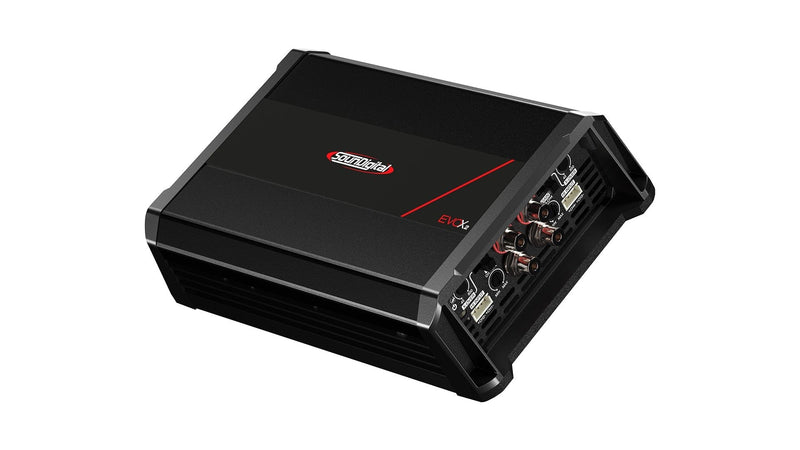

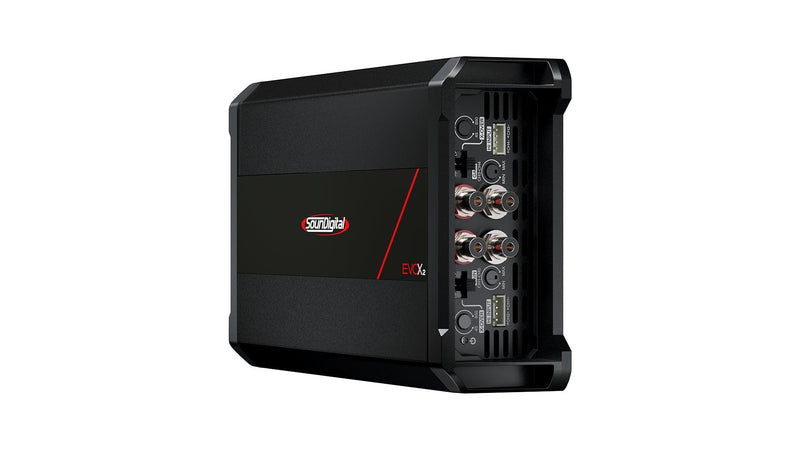

SaleSounDigital EVOX2 2400.4 - 4Ω or 2Ω
Vendor:SounDigital EVOXSounDigital EVOX2 2400.4 - 4Ω or 2Ω 2400.4 EVOX - 2 Ω Power @ 12.6V @ 4Ω: 4 X 262 WRMS Power @ 12.6V @ 2Ω: 4 X 398 WRMS Power @ 12.6V @ 1Ω: 4 X 600 WRMS Bridge Power @ 12.6V @ 4Ω: 2 X 792 WRMS Bridge Power @ 12.6V @ 2Ω: 2 X 1200 WRMS Product Dimensions: 9 x 5.3 x 2.2 in 2400.4 EVOX - 4 Ω Power @ 12.6V @ 4Ω: 4 X 396 WRMS Power @ 12.6V @ 2Ω: 4 X 600 WRMS Power @ 12.6V @ 1Ω: N/A Bridge Power @ 12.6V @ 4Ω: 2 X 1200 WRMS Bridge Power @ 12.6V @ 2Ω: N/A Product Dimensions: 9 x 5.3 x 2.2 inSale -

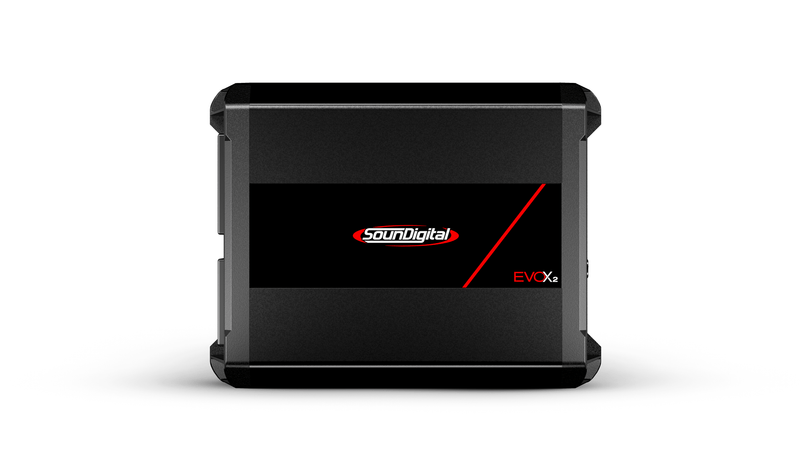

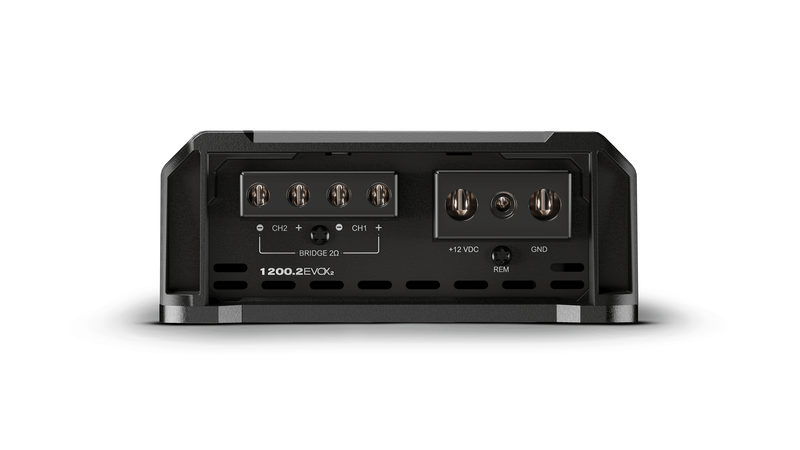

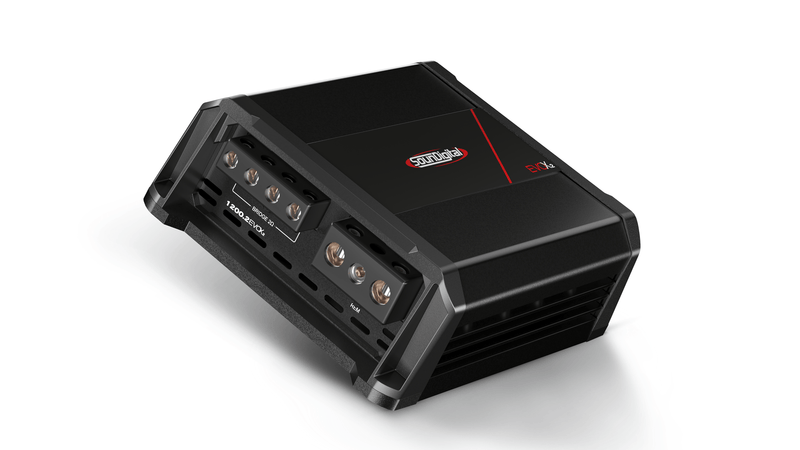

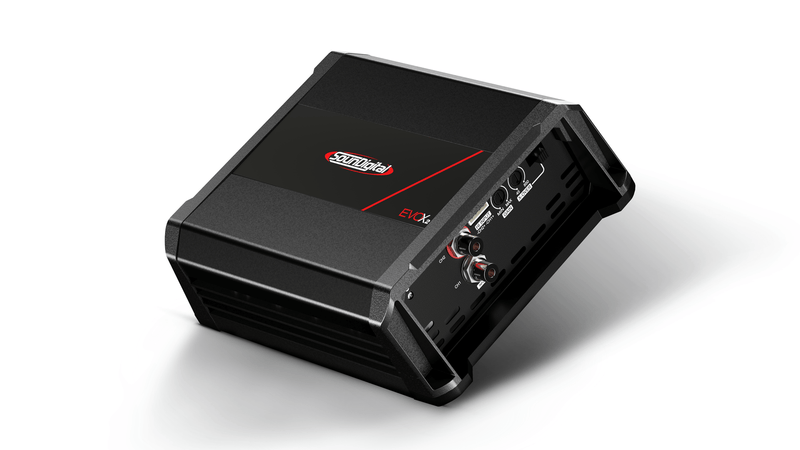

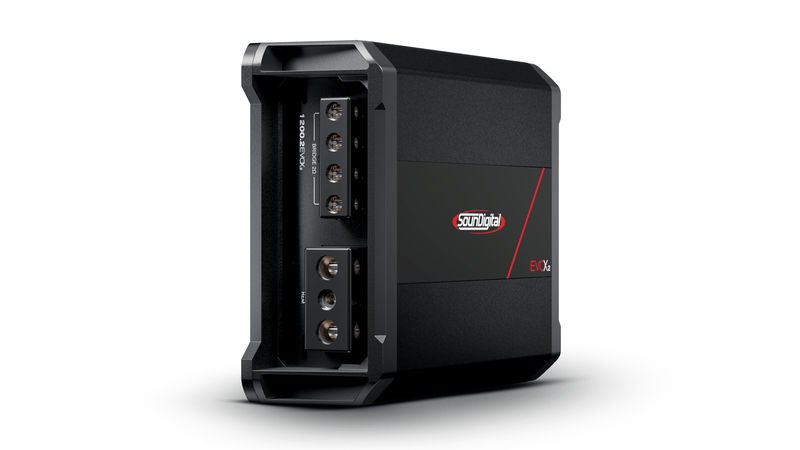

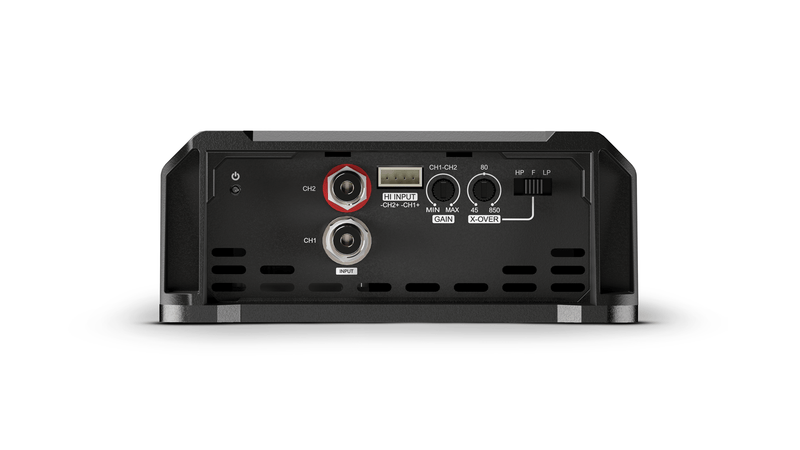

SounDigital EVOX2 1200.2 - 4Ω or 2Ω
Vendor:SounDigital EVOXSounDigital EVOX 1200.2 - 4Ω or 2Ω 1200.2 EVOX - 2 Ω Power @ 12.6V @ 4Ω: 2 X 261 WRMS Power @ 12.6V @ 2Ω: 2 X 396 WRMS Power @ 12.6V @ 1Ω: 2 X 600 WRMS Bridge Power @ 12.6V @ 4Ω: 1 X 792 WRMS Bridge Power @ 12.6V @ 2Ω: 1 X 1200 WRMS Product Dimensions: 7.1 x 5.4 x 2.2 in 1200.2 EVOX - 4 Ω Power @ 12.6V @ 4Ω: 2 X 396 WRMS Power @ 12.6V @ 2Ω: 2 X 600 WRMS Power @ 12.6V @ 1Ω: N/A Bridge Power @ 12.6V @ 4Ω: 1 X 1200 WRMS Bridge Power @ 12.6V @ 2Ω: N/A Product Dimensions: 7.1 x 5.4 x 2.2 in -

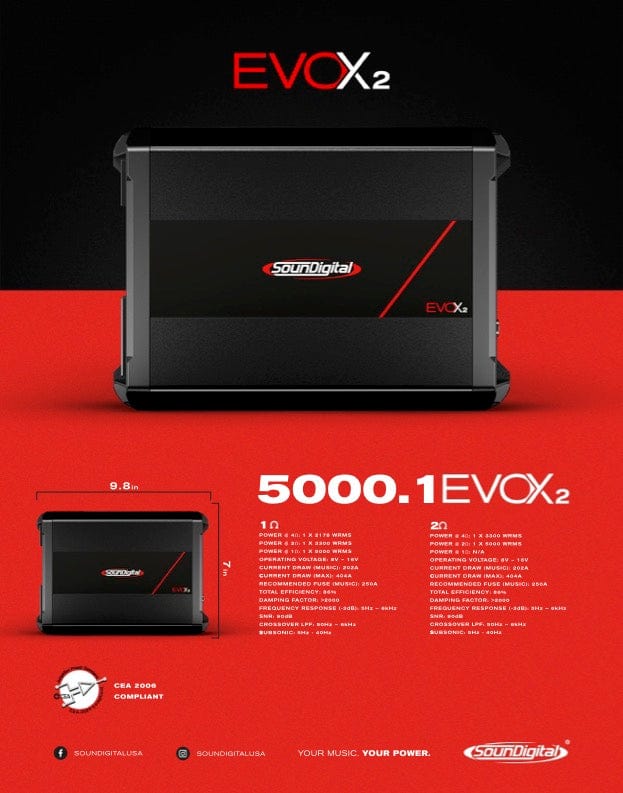

SounDigital EVOX2 5000.1 - 2Ω or 1Ω
Vendor:SounDigital EVOXSounDigital EVOX2 5000.1 - 2Ω or 1Ω 5000.1 EVOX - 2 Ω Power @ 12.6V @ 4Ω: 1 X 3300 WRMS Power @ 12.6V @ 2Ω: 1 X 5000 WRMS Product Dimensions: 9.8 x 7 x 2.8 in 5000.1 EVOX - 1 Ω Power @ 12.6V @ 4Ω: 1 X 2178 WRMS Power @ 12.6V @ 2Ω: 1 X 3300 WRMS Power @ 12.6V @ 1Ω: 1 X 5000 WRMS Product Dimensions: 9.8 x 7 x 2.8 in -

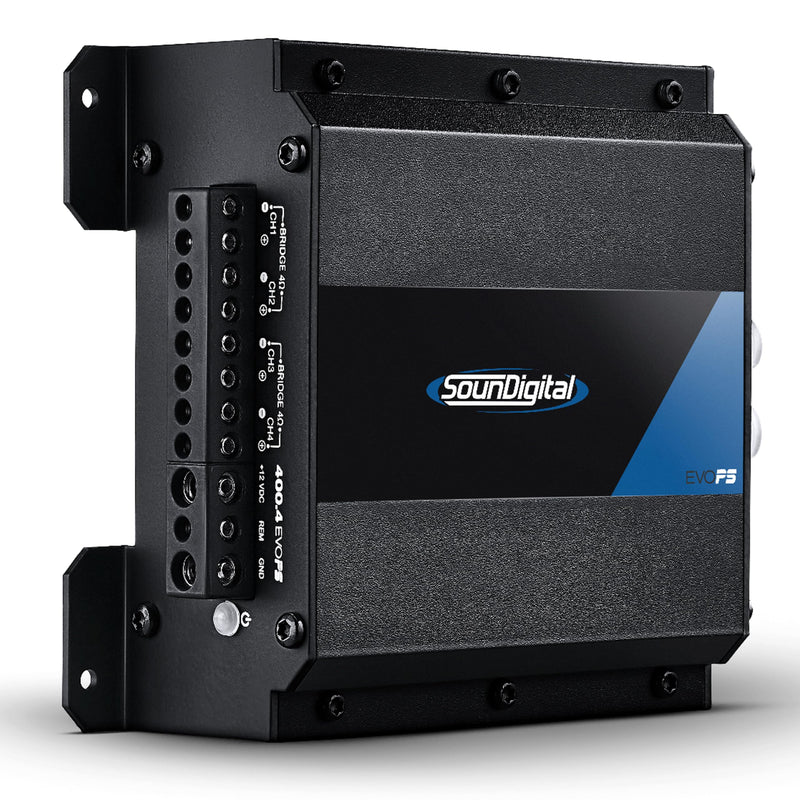

SounDigital EVOPS 400.4 - 4Ω
Vendor:SounDigital EVOXSounDigital EVOPS 400.4 - 4Ω All weather amplifier for your OUTDOOR life (IP64 Rated) 400.4 EVOPS Specs:Power @ 4Ω: 4 X 66 WRMSPower @ 2Ω: 4 X 100 WRMSPower @ 1Ω: N/ABridge Power @ 4Ω: 2 X 200 WRMSBridge Power @ 2Ω: N/AOperating Voltage: 10V – 16VCurrent Draw (Music): 19 ACurrent Draw (Max): 34 ARecommended Fuse (Music): 20 ATotal Efficiency: 79%Damping Factor: 200Frequency Response (-3dB): 5Hz – 22kHzSNR: 90dBCrossover HPF: 45Hz – 850HzCrossover LPF: 45Hz – 850HzTHD + N (10% Rated Power): 0.1%Product Dimensions: 4.8 x 5.1 x 2.1 inProduct Dimensions: 12.3 x 13 x 5.4 cm -

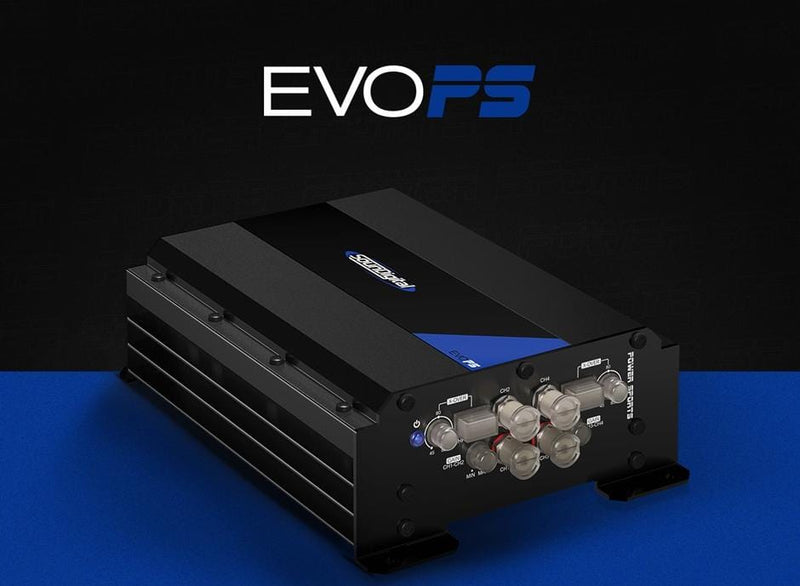

SaleSounDigital EVOPS 1200.4 - 2Ω or 4Ω
Vendor:SounDigital EVOXSounDigital EVO Powersport 1200.4 - 2Ω or 4Ω All weather amplifier for your OUTDOOR life (IP64 Rated) 1200.4 EVOPS - 2 Ω Power @ 4Ω: 4 X 130 WRMS Power @ 2Ω: 4 X 198 WRMS Power @ 1Ω: 4 X 300 WRMS Bridge Power @ 4Ω: 2 X 396 WRMS Bridge Power @ 2Ω: 2 X 600 WRMS Operating Voltage: 8V – 16V Current Draw (Music): 49 A Current Draw (Max): 99 A Recommended Fuse (Music): 60 A Total Efficiency: 84% Damping Factor: 200 Frequency Response (-3dB): 5Hz – 22kHz SNR: 88dB Crossover HPF: 45Hz – 850Hz Crossover LPF: 45Hz – 850Hz THD + N (10% Rated Power): 0.1% Product Dimensions: in 1200.4 EVOPS - 4 Ω Power @ 4Ω: 4 X 198 WRMS Power @ 2Ω: 4 X 300 WRMS Power @ 1Ω: N/A Bridge Power @ 4Ω: 2 X 600 WRMS Bridge Power @ 2Ω: N/A Operating Voltage: 8V – 16V Current Draw (Music): 50 A Current Draw (Max): 101 A Recommended Fuse (Music): 60 A Total Efficiency: 82% Damping Factor: 200 Frequency Response (-3dB): 5Hz – 22kHz SNR: 88dB Crossover HPF: 45Hz – 850Hz Crossover LPF: 45Hz – 850Hz THD + N (10% Rated Power): 0.1% Product Dimensions: inSale -

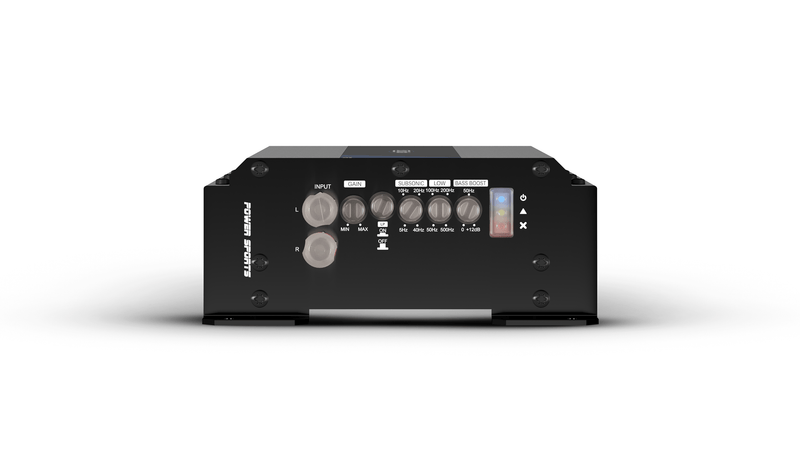

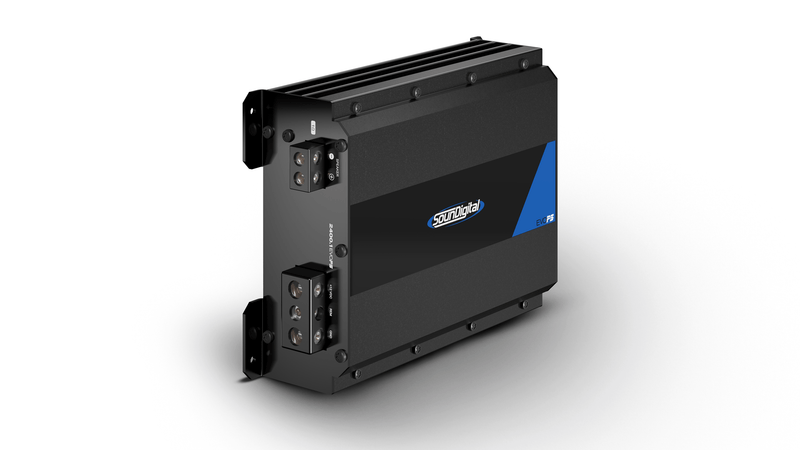

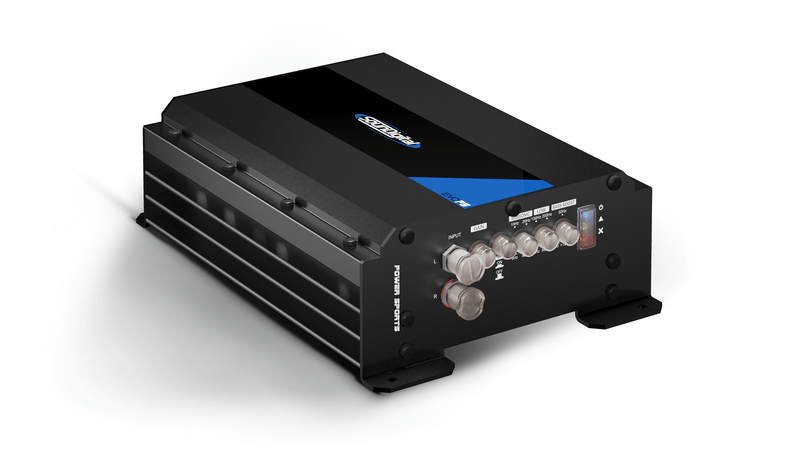

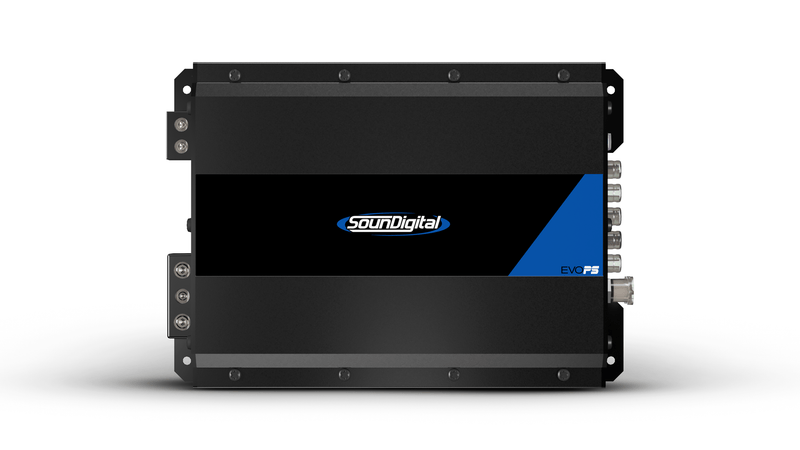

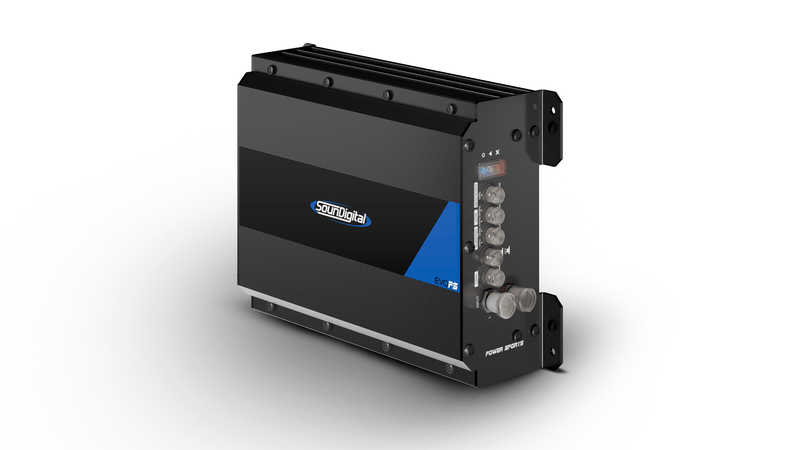

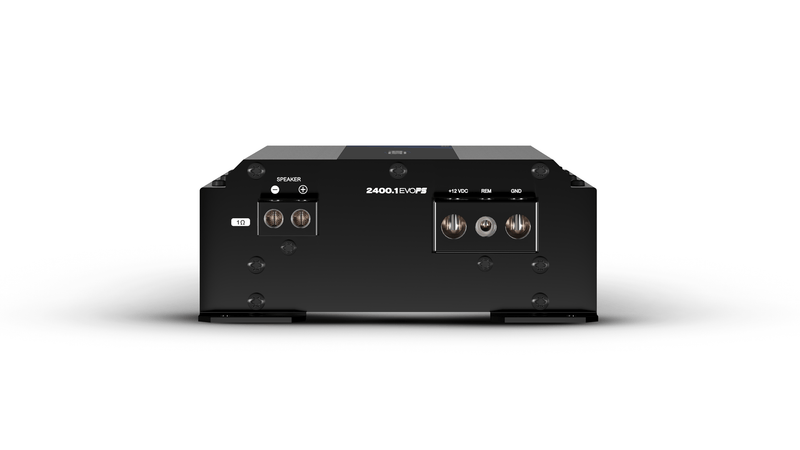

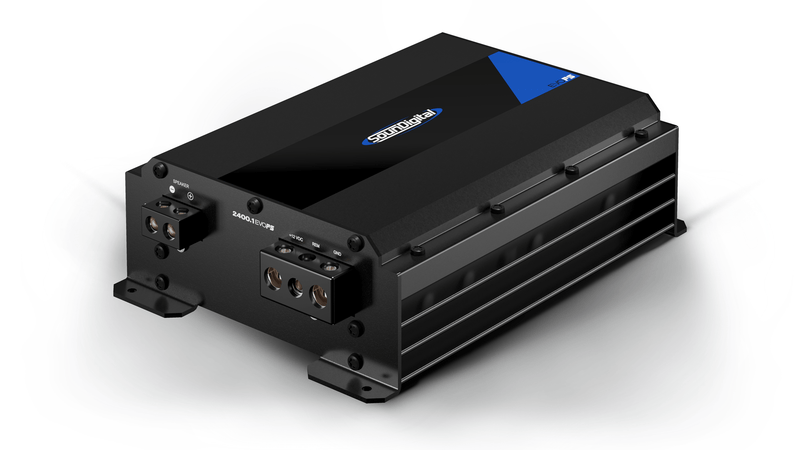

SaleSounDigital EVOPS 2400.1 - 2Ω or 4Ω
Vendor:SounDigital EVOXSounDigital EVO Powersport 2400.1 - 2Ω or 4Ω All weather amplifier for your OUTDOOR life Power @ 1Ω: N/A Power @ 2Ω: 1 X 2400W Power @ 4Ω: 1 x 1584 WRMS Power @ 8Ω: 1 x 1045 WRMS 2400.1 EVOPS – 4 OHMS Power @ 1Ω: N/A Power @ 2Ω: N/A Power @ 4Ω: 1 x 2400 WRMS Power @ 8Ω: 1 x 1584 WRMS Width: 5.8 in / 14,9 cm Length: 8.4 in / 21,4 cm Height: 2.3 in / 6 cmSale
-
SounDigital HKI MINI - DIGITAL SOUND PROCESSOR - DSP
Vendor:SounDigital EVOX8-Channel Digital Sound Processor 4 in / 8 out processor that is designed for smartphone programming, low level integration with enough EQ and adjustment capability to tune a majority of builds out there. We knew that this processor would find a home in multiple styles of builds, so we also had the board conformal coated to help protect it in less than ideal environments. 8 Channel DSP 4 Balances RCA Inputs Max Input Level: 4Vrms(+14dBu) Input Impedance: 100KΩ 8 RCA Outputs Max Output Level: 3.5Vrms(+13dBu) Frequency Response: 10 Hz to 24 kHz (-1dB) THD+N: <0.01% Bit Rate: 32 Bits Sampling Frequency: 96 kHz Types of Crossovers: Linkwitz-Riley / Butterworth / Bessel (up to 48dB/oct) Input EQ: 15 bands Output EQ: 8 bands per channel (Q Factor: 0.6 to 0.99) Time Alignment: 0 to 18.95ms Limiter Threshold: -54 to +6 dB Attack: 1 to 200 ms Release: 1 to 988ms Phase Control 3 Presets Dimensions: 5.9 x 4.3 x 1.7 inches This DSP does not have a remote out wire, only remote in. So an additional plug may be required or a TR4 to help prevent a popping that may occur on some bikes. To make out plug and play for 14 and up Harley Davidson Stock radio use this harness here. -
SounDigital EVOX2 400.2 - 4Ω
Vendor:SounDigital EVOXSounDigital EVOX2 400.2 - 4Ω 400.2 EVOX2 - 4 Ω Power @ 12.6V @ 4Ω: 2 X 132 WRMS Power @ 12.6V @ 2Ω: 2 X 200 WRMS Power @ 12.6V @ 1Ω: N/A Bridge Power @ 12.6V @ 4Ω: 1 X 400 WRMS Bridge Power @ 12.6V @ 2Ω: N/A Power @ 14.4V @ 4Ω: 2 X 147 WRMS Power @ 14.4V @ 2Ω: 2 X 223 WRMS Power @ 14.4V @ 1Ω: N/A Bridge Power @ 14.4V @ 4Ω: 1 X 446 WRMS Bridge Power @ 14.4V @ 2Ω: N/A Product Dimensions: 4.8 x 4.4 x 2.0 in -
Sale
SounDigital EVOX2 1200.4 - 4Ω or 2Ω
Vendor:SounDigital EVOXSounDigital EVOX2 1200.4 - 4Ω or 2Ω 1200.4 EVOX - 2 Ω Power @ 12.6V @ 4Ω: 4 X 131 WRMS Power @ 12.6V @ 2Ω: 4 X 198 WRMS Power @ 12.6V @ 1Ω: 4 X 300 WRMS Bridge Power @ 12.6V @ 4Ω: 2 X 396 WRMS Bridge Power @ 12.6V @ 2Ω: 2 X 600 WRMS Product Dimensions: 7.1 x 5.3x 2.2 in 1200.4 EVOX - 4 Ω Power @ 12.6V @ 4Ω: 4 X 198 WRMS Power @ 12.6V @ 2Ω: 4 X 300 WRMS Power @ 12.6V @ 1Ω: N/A Bridge Power @ 12.6V @ 4Ω: 2 X 600 WRMS Bridge Power @ 12.6V @ 2Ω: N/A Product Dimensions: 7.1 x 5.3 x 2.2 inSale -
Sale
SounDigital EVOX2 2400.4 - 4Ω or 2Ω
Vendor:SounDigital EVOXSounDigital EVOX2 2400.4 - 4Ω or 2Ω 2400.4 EVOX - 2 Ω Power @ 12.6V @ 4Ω: 4 X 262 WRMS Power @ 12.6V @ 2Ω: 4 X 398 WRMS Power @ 12.6V @ 1Ω: 4 X 600 WRMS Bridge Power @ 12.6V @ 4Ω: 2 X 792 WRMS Bridge Power @ 12.6V @ 2Ω: 2 X 1200 WRMS Product Dimensions: 9 x 5.3 x 2.2 in 2400.4 EVOX - 4 Ω Power @ 12.6V @ 4Ω: 4 X 396 WRMS Power @ 12.6V @ 2Ω: 4 X 600 WRMS Power @ 12.6V @ 1Ω: N/A Bridge Power @ 12.6V @ 4Ω: 2 X 1200 WRMS Bridge Power @ 12.6V @ 2Ω: N/A Product Dimensions: 9 x 5.3 x 2.2 inSale
Soundigital: Revolutionizing Motorcycle Audio
Soundigital Evox amplifiers bring the perfect combination of innovation, high efficiency, and exceptional sound quality to your motorcycle audio system. Originating from a passion project by Juliano Anflor in the '90s, Soundigital has evolved into a global leader in the audio industry, with products available in over 40 countries. Designed in the heart of Brazil's technology hub, each amplifier is meticulously crafted to ensure superior performance and durability.
Unmatched Sound Quality
Soundigital Evox amps are engineered to deliver crystal-clear audio signals, ensuring your music sounds as the artist intended. With a focus on digital signal processing, these digital amplifiers maintain the integrity of your digital audio, from classic vinyl records to the latest digital tracks. The result is a sound system that brings the concert experience to your ride.
Cutting-Edge Technology
Embracing new technologies, Soundigital Evox amplifiers feature advanced digital smart amplifiers that optimize your audio system's performance. Whether you're cruising through the city or hitting the open road, these amplifiers provide additional power to your speakers and subwoofers, enhancing bass and overall output without compromising on sound quality.
Efficient and Reliable Performance
With high power output and total efficiency, Soundigital Evox amplifiers ensure your audio system performs at its best, even on long journeys. The amplifiers' solid-state design and recommended fuse settings guarantee reliable operation, while their compact product dimensions make them an ideal fit for any motorcycle setup.
Garage Bagger: Only Carrying the Best
At Garage Bagger Stereo, we're dedicated to providing top-tier audio equipment, and SounDigital is a prime example of the elite brands we offer. Understanding the importance of excellent sound for your ride or sail, we feature SounDigital’s exceptional parts range. We know selecting the right gear can be daunting, so our expert team, armed with extensive knowledge and enthusiasm for audio, is ready to assist you in finding the ideal setup for your motorcycle or boat. Thank you for considering SounDigital at Garage Bagger Stereo, where premium quality and expert guidance are our standards.
